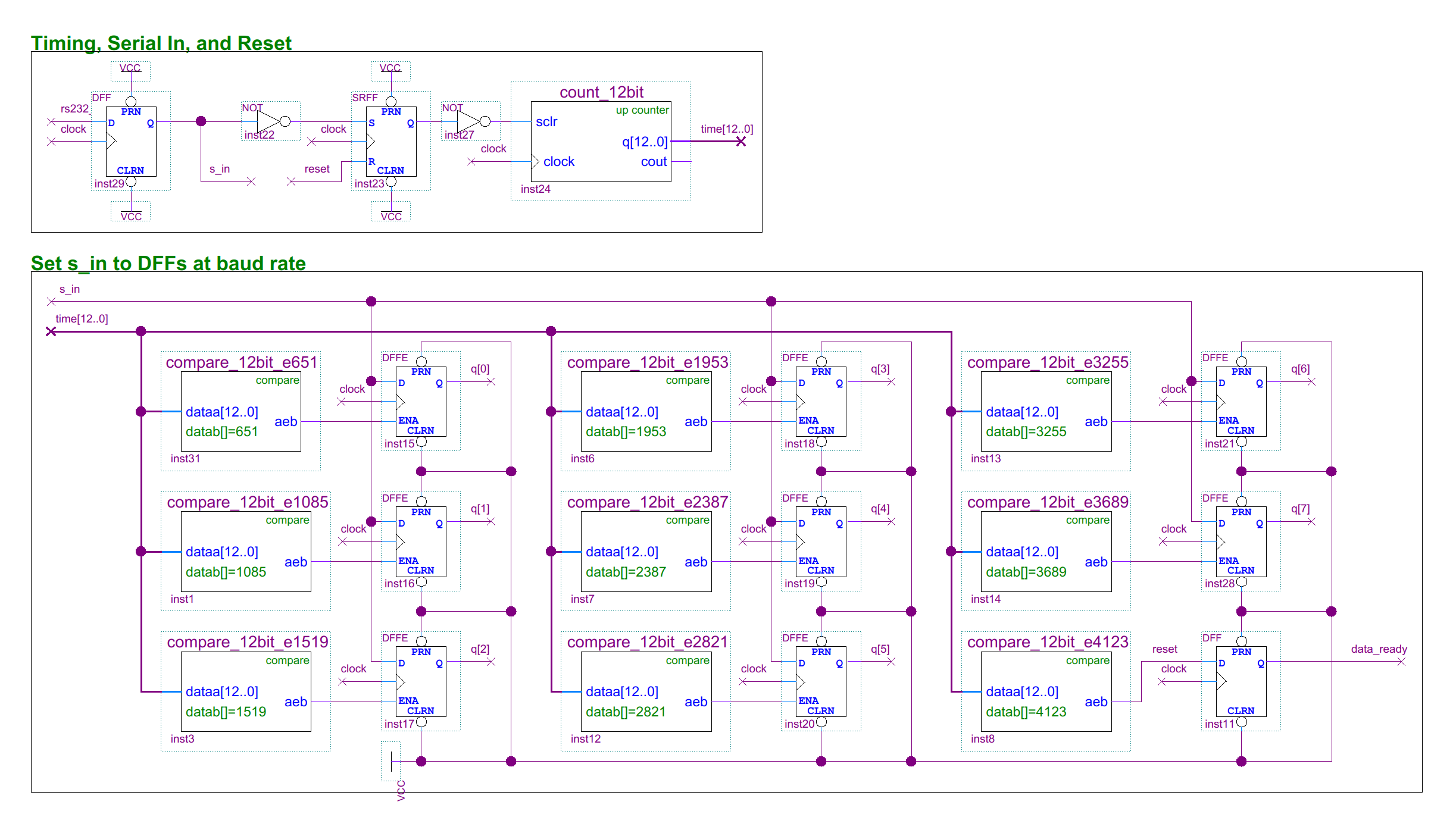

Here is how the RS-232 decoder works in Quartus.

The "Timing, Serial In, and Reset" block takes the rs232_in
signal and synchronizes it to the 50 MHz system clock.
Then it sends the synchronized signal s_in to two places.
The first is a set of 9 flip-flops described below, and
the second is (through an inverter) to an SR flip-flop.
The 12-bit counter in this block produces a number that
counts up at 50 MHz.  This counter is cleared by the
"reset" line from the 9th flip-flop in the decoder (see
below) when the decoder finishes decoding one byte, and it
will then be made ready to clear again by the SR flip-flop
the next time a new byte is received on the serial line.

The s_in signal is fed to the D inputs of 8 separate
D flip-flops, each of which will store one bit of the
decoded byte from the serial line, for example q[0].
All 8 flip-flops are clocked at 50 MHz using the onboard
system clock.

The 8 decoder flip-flops have enable inputs that must
be high for the s_in value to be sent to the q output.
Each enable input is turned on for only one clock cycle by
the corresponding magnitude comparator when the counter
reaches a particular value (aeb: a=b).  The values are
the number of 50 MHz clock cycles that it takes to get to
the center of the interval when the corresponding bit is
coming in on the RS-232 line.

For example (see the timing diagram here), the center
of the start bit happens half way through the first
interval, with each interval being 1/(baud rate) = 1/115200
= 8.68 us (us = microseconds).  So this time would be
(8.68 us)/2 = 4.34 us.  The center of the q[0] data bit
would be one interval later, which would be 8.68 + 4.34 =
13.02 us.  13.02 us is 651 50 MHz clock cycles (each of
which is 20 ns), so the q[0] magnitude comparator is set
to transfer the value of the q[0] bit from the s_in line
when the counter value hits 651.

Likewise, the center of the q[3] bit happens 4.5 intervals
after the rising edge of the start bit, so the counter value
at that time is 4.5*0.00000868*50000000 = 1953.

Finally, the 9th magnitude comparator in the decoder sets
the reset line for the counter high after 9.5 intervals,
in the middle of the stop bit.  9.5*0.00000868*50000000 =
4123.  The 9th flip-flop turns on the data_ready line at
the next clock cycle rising edge.
